3D Stone Sculpture Carving Machine3D 立體雕刻機

領跑智能製造新“石”代

3D Stone Sculpture Carving Machine3D 立體雕刻機

所屬品牌:

所屬類別:雕刻設備

想了解更多相關產品信息,請聯係我們!

0594-2197723
hualongmc@163.com
我要谘詢
  • 產品說明
  • 技術參數

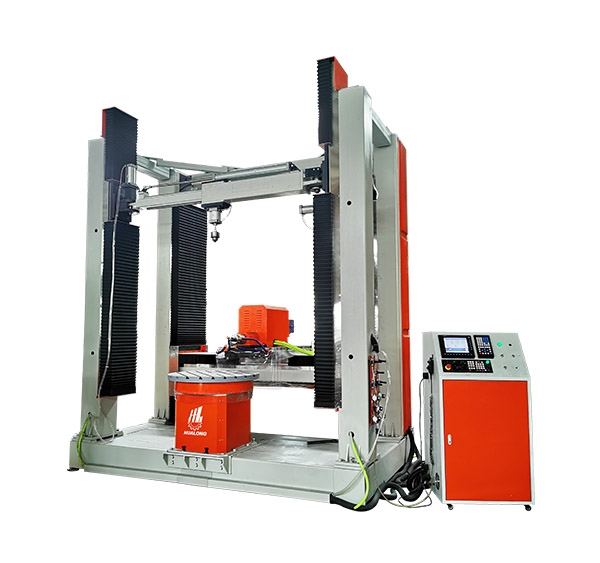

3D 立體雕刻機
HLSD3-1525 是一款配備銑刀的四軸數控機床,還配備了可切換的鋸片,用於快速粗加工。它能夠對各種岩石進行三維立體雕刻,如大理石、花崗岩、石英岩、砂岩或人造石或陶瓷、玻璃、塑料、木材或泡沫等。
它主要應用於墓碑加工行業、家居裝飾行業、工藝品行業,用於雕刻石雕佛像、石欄杆、石工藝品、石藝術項目及創意等。

3D Stone Sculpture Carving Machine

HLSD3-1525 is a 4 axis CNC machine mounted with milling cutter for engraving and switchable saw blades for fast roughing. It can realize 3-dimensional stereoscopic engraving for all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass, plastic, wood or foam etc.
It's mainly applied to tombstone processing industry, home decoration industry, arts and crafts industry for carving stone Buddhas statues & sculptures, stone balustrades, stone crafts, stone artwork projects & ideas etc.



這台機器配備了可切換的雙處理頭。
鋸片先進行快速粗加工,從而節省了後續雕刻所需的時間。

This machine is mounted with switchable double processing heads.

The saw blade make fast roughing first and save lots of time for next engraving.


Main Features
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) C
ompatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Big standing type rotary table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.





主要特點
1) 采用 NcStudio 數控控製係統,配備大尺寸彩色顯示屏,操作簡便易懂。
2) 具備斷點恢複功能。在電源恢複後,可從斷點繼續雕刻。
3) 與 Artcam JD Paint CAM 軟件及其他軟件程序兼容。
4) 高性能新型材料電機和驅動器能夠耐高溫、抗衝擊和適應惡劣環境,確保工作速度高且精度高。
5) 專業的矢量控製變頻器保證多種工作速度、平穩運行,並降低能耗。
6) 大型立式旋轉工作台,增加了厚型 PVC 板,提高了平台的承載能力。
7) 鋼管車床床身,重心低,承載能力強,穩定且使用壽命長。




型號 HLSD3-1020 HLSD3-1525 HLSD3-2030
工作平台尺寸 1500*2000mm 1500*2500mm 2000*3000mm
X、Y、Z軸運動定位精度 0.05/300mm
X、Y、Z軸運動重複精度 0.01
對角線精度 0.6/1000×1000mm
主軸電機功率 7.5+KW(水冷)
主軸電機可裝卡最大刀具 φ20mm
主軸電機冷卻方式/主軸轉速 水冷/0-24000rpm
快速移動速度 15m/min
最高切削進給速度 10m/min
驅動係統 伺服係統
工作電壓 主電機、主機床:三相380v/50Hz;
機身外型尺寸 3300mm×4500mm×4800mm
機器重量 ≈9000KG

型號 HLSD3-1020 HLSD3-1525 HLSD3-2030
工作平台尺寸 1500*2000mm 1500*2500mm 2000*3000mm
X、Y、Z軸運動定位精度 0.05/300mm
X、Y、Z軸運動重複精度 0.01
對角線精度 0.6/1000×1000mm
主軸電機功率 7.5+KW(水冷)
主軸電機可裝卡最大刀具 φ20mm
主軸電機冷卻方式/主軸轉速 水冷/0-24000rpm
快速移動速度 15m/min
最高切削進給速度 10m/min
驅動係統 伺服係統
工作電壓 主電機、主機床:三相380v/50Hz;
機身外型尺寸 3300mm×4500mm×4800mm
機器重量 ≈9000KG

溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯係我們。
