HLNC-400+ CNC Stone Bridge Saw HLNC-400+數控石橋鋸
領跑智能製造新“石”代
HLNC-400+ CNC Stone Bridge Saw HLNC-400+數控石橋鋸
所屬品牌:午夜福利视频网站
所屬類別:產品庫
想了解更多相關產品信息,請聯係我們!
0594-2197723
hualongmc@163.com
數控石橋鋸 HLNC-400+ 是一款配備可傾斜頭和可傾斜工作台的數控全插補四軸橋鋸,能夠對板材和石塊進行任何類型的加工、切割(直線或曲線、垂直或傾斜)、二維輪廓加工、銑削和二維雕刻操作。
該機器可一次性或分步加工大理石、花崗岩、複合石材和陶瓷製品。
該機器可高度定製,是以下高產量車間的理想解決方案:
* 廚房台麵
* 梳妝台台麵
* 室內外牆板
* 地板
* 門階、樓梯和門檻
* 街道家具
* 浮雕

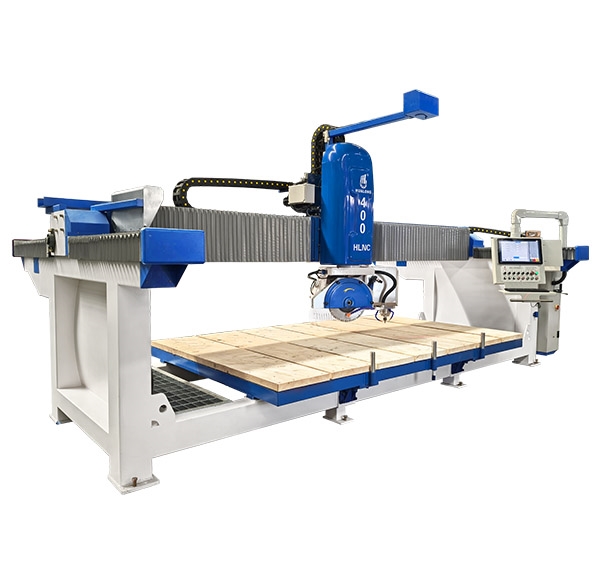

CNC Stone Bridge Saw
HLNC-400+ is a numerically controlled fully interpolated 4 axis bridge saw with tilting head and tilting table to carry out any type of machining, cutting (straight or curved, vertical or inclined), 2D profiling, milling and 2D engraving operations, on slabs and stone blocks.
This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces.
This machine can be very customized, it is the perfect solution for shops with high productivity of:
* kitchen countertops
* vanity tops
* wall panels for interiors and exteriors
* flooring
* doorsteps, staircases and thresholds
* street furniture
* bas-reliefs
Modle No.
|
HLNC-400+
|
HLNC-650+
|
Diameter of saw blade
|
mm
|
ø400
|
ø650
|
Blade mitering
|
°
|
0-45
|
0-45
|
Dimension of working platform
|
mm
|
3500x2100
|
3500x2100
|
Max. cutting length
|
mm
|
3500
|
3500
|
Max. cutting thickness
|
mm
|
70
|
200
|
Max. lifting stroke
|
mm
|
250
|
300
|
Max. lifting weight by sunction cups
|
kg
|
100 x 2
|
100
|
Power of main motor
|
kw
|
15
|
18.8
|
Power of electric spindle motor
|
kw
|
5.5
|
5.5
|
Power of cutter frame reciproctating motor
|
kw
|
2
|
2
|
Power of crossbeam shifting motor
|
kw
|
1.1
|
1.1
|
Power of hydraulic station motor
|
kw
|
2.2
|
|
Power of lifting motor
|
kw
|
0.85
|
0.85
|
Gross power
|
kw
|
28.7
|
32.5
|
Water consumption
|
m3/h
|
2
|
2
|
Gross weight
|
kg
|
4500
|
6000
|
Dimensions (L x W x H)
|
mm
|
5800x3380x2770
|
6200x3380x3000
|
%>
溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯係我們。
